Aluminum Lift Platform

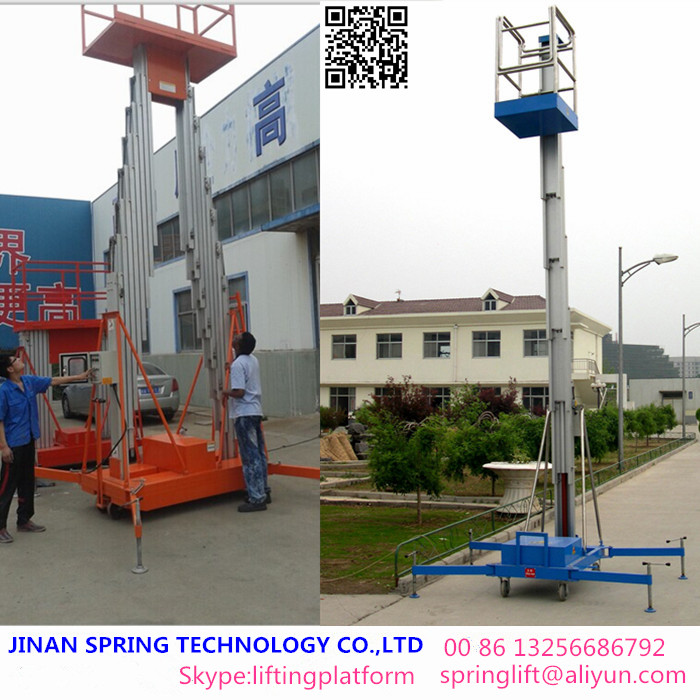

Single mast and pair mast Aluminum Lift Platform
Overview
The aluminum lift platform can be classified by lifting height and load capacity to four kinds:one mast,pair masts,three masts and four masts.Lift height from 4m to 20m,load capacity can be 100kg,200kg,300kg,etc.
Advantage
1.High-duty aluminum alloy structure,small dimension and light weight,can be easy to move and pass through door,stairs,elevators and other narrow space.
2.It is operated by control box and remote controller by hand.
3.Power can be 110V,220V,DC battery,etc.
4.The aluminum lift can add auxiliary walking system for man to move easy,can be inclinable to be low height.
Suitable places
Aluminum lift platform are suite for hotels,banks,big halls,supermarkets,airport and railway station waiting rooms,etc.
|
臺(tái)面高度 Platform height (m) |
型號(hào) Model
|
載重 Load capacity (kg) |
功率 Power (kw) |
電壓Voltage (v)
|
尺寸 Dimension (mm)
|
臺(tái)面尺寸 Table size （mm）
|
重量Weight (kg) |
|
4 |
SML(I-4) |
100 |
1.1 |
220 |
1100×700×1980 |
600x600 |
210 |
|
6 |
SML(I-6) |
100 |
1.1 |
220 |
1200×700×1980 |
600x600 |
240 |
|
8 |
SML(I-8) |
100 |
1.1 |
220 |
1300×800×1980 |
600x600 |
280 |
|
10 |
SML(I-10) |
100 |
1.5 |
220 |
1300×900×2000 |
600x600 |
380 |
|
SML(II-10) |
200 |
1.5 |
220 |
1850×900×1980 |
1450x650 |
700 |
|
|
12 |
SML(II-12) |
200 |
1.5 |
220 |
1900×900×1980 |
1550x650 |
750 |
|
14 |
SML(II-14) |
200 |
1.5 |
220 |
2000×1000×2300 |
1600x650 |
800 |
