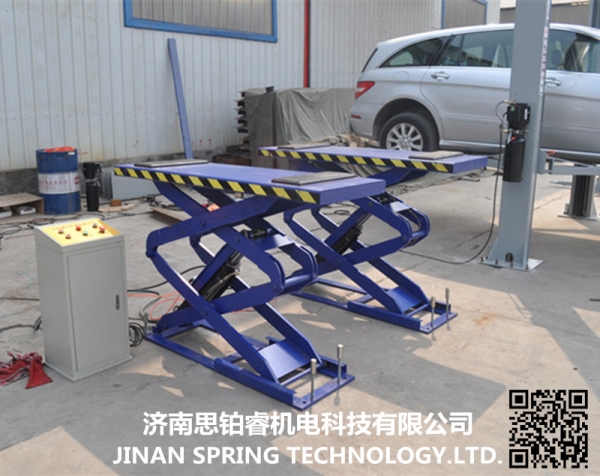

Ground-hiding scissor car lift
Ground-hiding scissor car lift
Advantages
1.In-ground installation.
2.Extensible platform design.
3.Pneumatic lock release,considerably reduce the noise when the machine running.
4.Dual cylinder design,easy to debug.
5.Low voltage control system.
6.Pass 115% dynamic and 150% static testing.
7.Comply with the European Union CE safety standards.
|
型號(hào) |
Model |
SP-K3000 |
SP-K3500 |
|
舉升重量 |
Lifting capacity |
3000kg |
3500kg |
|
最低高度 |
Min height |
300mm |
300mm |
|
舉升高度 |
Lift height |
1980mm |
1980mm |
|
電機(jī)功率 |
Power of motor |
2.2Kw |
3Kw |
|
額定油壓 |
Oil pressure |
17-19Mpa |
17-19Mpa |
|
電源要求 |
Power supply |
220V/380V,50HZ etc |
|
|
升降時(shí)間 |
Rise & Drop time |
<=50s |
<=50s |
